Elektro-Automatik EA-3048B Power Supply Teardown

[armandas]

As the title says, this is a teardown of the EA-3048B power supply. There is not much info on the internet about these, so I thought I'd share some pictures and comments.

This is a so-called "universal" power supply. It has two outputs: DC and AC. The DC is not regulated, so you either get rectified or smoothed (using a 4700uF cap) output.

Not much else to say, I guess, so let's look at what's inside.


Front view.


Overview of the insides.

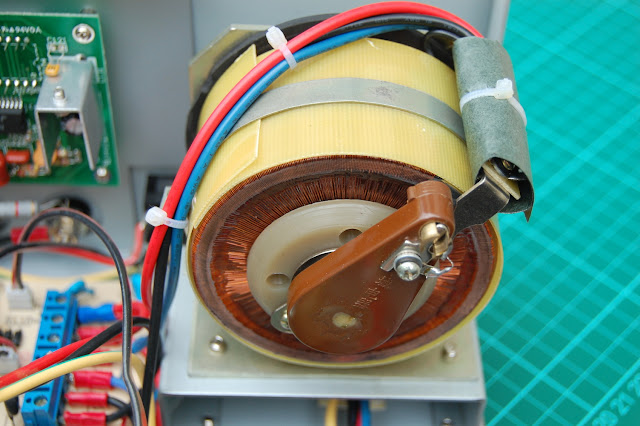

The voltage is controlled using a variable transformer (variac).


Display board.






Binding posts.


Made in China..

There are some more pictures in the album.

These PSUs are sold by Farnell.
