Let play a game
« on: May 16, 2010, 05:33:22 pm »
Hi everyone,

The rules are very simple, someone show a device and we need to find what is use for. The first one the give the right answer will have to show the next device. If you don't have one, just say it and someone will be glad to show one. You can give as much clue as you want.

I will start with my one little device:






Sorry again for my bad english
« Last Edit: May 16, 2010, 06:47:53 pm by safarir »
Logged


Offline safarirTopic starter

  • Regular Contributor
  • *
  • Posts: 83
Re: Let play a game
« Reply #1 on: May 16, 2010, 06:47:11 pm »
Someone will be glad to show one...
Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #2 on: May 16, 2010, 09:10:55 pm »
It looks like some sort of pneumatic valve opener.
Logged


Offline Polossatik

  • Frequent Contributor
  • **
  • Posts: 295
  • Country: be
Re: Let play a game
« Reply #3 on: May 16, 2010, 09:50:52 pm »
I would add to the rules that you need to say how you got there.

I think that those black funny things are rotation/speed sensors (ate name on it).
Then you have a nice microswitch on the pcb, I would say to be used for sensing an "end" and the button switch to activate something...

Then all going to µcontroller I guess.

Some electric window system?

edit: by the way, for some real hard core EE guessing see http://www.bunniestudios.com/ "name that ware" (and the rest of the blog is good reading to...)
« Last Edit: May 16, 2010, 10:21:06 pm by polossatik »
Logged
Real Circuit design time in minutes= (2 + Nscopes) Testim + (40 +120 Kbrewski) Nfriends

Testim = estimated time in minutes Nscopes= number of oscilloscopes present Kbrewski = linear approx of the nonlinear beer effect Nfriends = number of circuit design friends present


Offline safarirTopic starter

  • Regular Contributor
  • *
  • Posts: 83
Re: Let play a game
« Reply #4 on: May 16, 2010, 10:10:03 pm »
Quote from: migsantiago on May 16, 2010, 09:10:55 pm
It looks like some sort of pneumatic valve opener.
You are in the good way...
Logged


Offline DavidDLC

  • Frequent Contributor
  • **
  • Posts: 755
  • Country: us
Re: Let play a game
« Reply #5 on: May 16, 2010, 11:40:04 pm »
Are these from an automatic coffe machine ?
Logged


Offline safarirTopic starter

  • Regular Contributor
  • *
  • Posts: 83
Re: Let play a game
« Reply #6 on: May 16, 2010, 11:51:48 pm »
Nop
Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #7 on: May 17, 2010, 02:45:06 am »
Is it a neumatic silencer? Like the ones used to release air but quietly.
Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #8 on: May 28, 2010, 07:45:27 pm »
Any more tips? Hello?  ;D

Logged


Offline kc1980

  • Regular Contributor
  • *
  • Posts: 99
Re: Let play a game
« Reply #9 on: May 28, 2010, 08:29:39 pm »
This game reminds me of the TV series Lost.  Arggg!!!
Logged


Offline Simon

  • Global Moderator
  • *****
  • Posts: 18092
  • Country: gb
  • Did that just blow up? No? might work after all !!
    • Simon's Electronics
Re: Let play a game
« Reply #10 on: May 28, 2010, 08:36:11 pm »
To me they look like a control system for a machine. the 3 boards look like end of track sensors and controllers as they have a microswitch each.

If this game takes off i suggest Dave makes a seperate category for it and we put a game in each thread, I have a neat thing to show, the oldies here will recognize it immediately but anyone under 40 will not  ;D
Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #11 on: May 28, 2010, 11:09:28 pm »
If your secret board has vacuum bulbs (those things that were replaced with transistors) I'd bet it's a tv or a radio.  :D
Logged


Offline safarirTopic starter

  • Regular Contributor
  • *
  • Posts: 83
Re: Let play a game
« Reply #12 on: May 29, 2010, 02:29:56 am »
Sorry Guys, I completly forget this post,

I will give the answer and someone post something else..

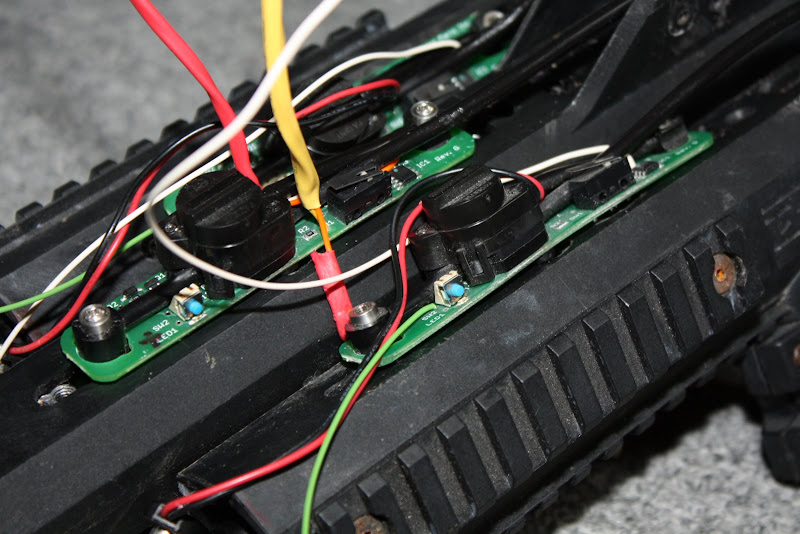

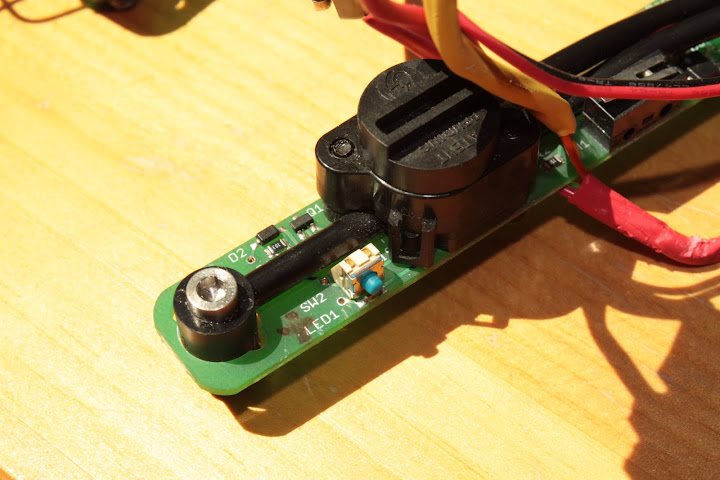

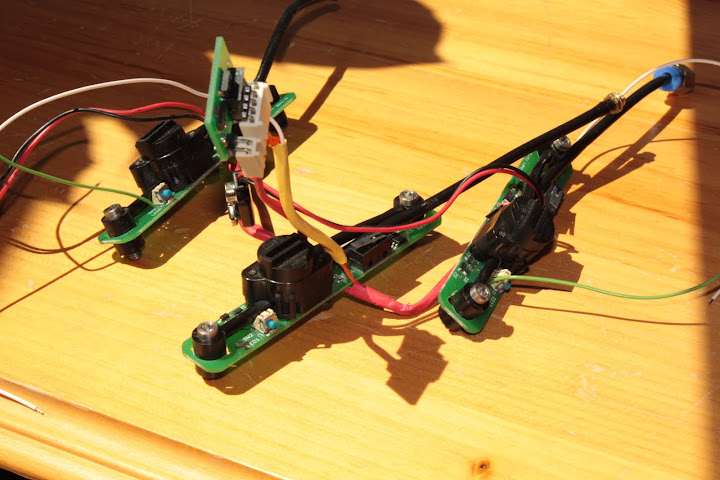

There are 3 Paintball Gun control board from smart part that are connect to a costum board that will have a pic10f206 to fire each gun one after the other.




Who's next ?
« Last Edit: May 29, 2010, 02:38:47 am by safarir »
Logged


Offline kc1980

  • Regular Contributor
  • *
  • Posts: 99
Re: Let play a game
« Reply #13 on: May 29, 2010, 08:22:28 am »
OK, pop quiz hot shot!  Guess what this is.  ::)
Logged


Offline DJPhil

  • Frequent Contributor
  • **
  • Posts: 511
  • Country: 00
Re: Let play a game
« Reply #14 on: May 29, 2010, 10:49:10 am »
Quote from: kc1980 on May 29, 2010, 08:22:28 am
OK, pop quiz hot shot!  Guess what this is.  ::)

Is that brand new? The rails look clean, no gunk buildup, and it's got clean grease.
Everyone I knew either never cleaned their mouse, or wiped the grease off with the gunk.
If you maintained that yourself, extra points. :D
Logged


Offline Simon

  • Global Moderator
  • *****
  • Posts: 18092
  • Country: gb
  • Did that just blow up? No? might work after all !!
    • Simon's Electronics
Re: Let play a game
« Reply #15 on: May 29, 2010, 11:18:00 am »
Quote from: kc1980 on May 29, 2010, 08:22:28 am
OK, pop quiz hot shot!  Guess what this is.  ::)

thats kinda obvious lets make this a real informative game. I used to take parts to my local TV man for IDing, I was amazed when i showed him what i knew was some sort power supply but he told me it's rating and what make TV it came from !
Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #16 on: May 29, 2010, 02:29:35 pm »
Oh a paintball gun!  ;D

Quote from: kc1980 on May 29, 2010, 08:22:28 am
OK, pop quiz hot shot!  Guess what this is.  ::)

That's a truly archaic mouse  :D
Logged


Offline kc1980

  • Regular Contributor
  • *
  • Posts: 99
Re: Let play a game
« Reply #17 on: May 29, 2010, 09:03:45 pm »
Quote from: Simon on May 29, 2010, 11:18:00 am
thats kinda obvious lets make this a real informative game. I used to take parts to my local TV man for IDing, I was amazed when i showed him what i knew was some sort power supply but he told me it's rating and what make TV it came from !

yeah i know. i was just being facetious.  so who's next?
Logged


Offline 74HC04

  • Contributor
  • Posts: 49
  • Country: gb
  • Lifetime Electronics Nerd and full-time EE.
Re: Let play a game
« Reply #18 on: May 30, 2010, 01:49:26 pm »
Here's one from my blog :)

Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #19 on: May 30, 2010, 02:09:27 pm »
Quote from: 74HC04 on May 30, 2010, 01:49:26 pm
Here's one from my blog :)

There's a couple of IC's that don't have a datasheet online. I don't have printed datasheets so I can't do anything about them  ;D

Here's a better photo in case someone couldn't see the IC part numbers:
http://picasaweb.google.co.uk/lh/photo/232P3Fg_ZV-fQqM0Bc0GfW9WsmYr_Jb6KcZbWS1xuKk?feat=embedwebsite

I'd say it's a KITT led driver...  ;D
Logged


Offline comox

  • Regular Contributor
  • *
  • Posts: 52
Re: Let play a game
« Reply #20 on: May 30, 2010, 10:49:09 pm »
It looks like a 3-port serial IO expander from the early 80s, most likely for an early 80s computer.
Logged


Offline 74HC04

  • Contributor
  • Posts: 49
  • Country: gb
  • Lifetime Electronics Nerd and full-time EE.
Re: Let play a game
« Reply #21 on: June 06, 2010, 12:29:13 pm »
Quote
I'd say it's a KITT led driver...  Grin
Hehe! Great guess, but sadly it's a bit off. Very creative thinking there!

Quote
It looks like a 3-port serial IO expander from the early 80s, most likely for an early 80s computer.

Getting very warm! The only other clue I'm giving right now is that it's a UK made product...

Logged


Offline tecman

  • Frequent Contributor
  • **
  • Posts: 444
  • Country: us
Re: Let play a game
« Reply #22 on: June 06, 2010, 01:09:05 pm »
Quote from: 74HC04 on June 06, 2010, 12:29:13 pm

Quote
It looks like a 3-port serial IO expander from the early 80s, most likely for an early 80s computer.

Getting very warm! The only other clue I'm giving right now is that it's a UK made product...



Latest Lucas headlight switch ?

paul
Logged


Offline migsantiago

  • Frequent Contributor
  • **
  • Posts: 381
  • Country: 00
    • MigSantiago's Web Site
Re: Let play a game
« Reply #23 on: June 06, 2010, 01:55:31 pm »
Is it a 3 port DMX-rs485 receiver?
Logged
