Author Topic: Trying to identify a source for a QFP 160 socket  (Read 976 times)

0 Members and 1 Guest are viewing this topic.

Offline SolderSuckerTopic starter

  • Regular Contributor
  • *
  • Posts: 145
  • Country: gb
Trying to identify a source for a QFP 160 socket
« on: August 09, 2020, 03:02:07 pm »
Hope this is the right area to post this, if not let me know.

I need to get hold of a QFP 160 socket, all I have for reference is a board with one already fitted, see pic below:

https://i.ibb.co/MhwcqZp/20181123-121751.jpg

It's made by Amp but I have been looking at Amp's website and other places yet can't seem to find the right socket (it's probably no longer manufactured). I need this for testing some old 160 pin QFP chips. I've found assorted test sockets but they are usually through-hole mounting only I of course need to surface mount this.


Offline Benta

  • Super Contributor
  • ***
  • Posts: 6420
  • Country: de
Re: Trying to identify a source for a QFP 160 socket
« Reply #1 on: August 09, 2020, 04:59:23 pm »
Yamaichi perhaps?



Offline SolderSuckerTopic starter

  • Regular Contributor
  • *
  • Posts: 145
  • Country: gb
Re: Trying to identify a source for a QFP 160 socket
« Reply #2 on: August 10, 2020, 09:53:55 am »
Thanks, I was looking at their sockets but couldn't seem to find anything suitable.


Offline Gribo

  • Frequent Contributor
  • **
  • Posts: 649
  • Country: ca
Re: Trying to identify a source for a QFP 160 socket
« Reply #3 on: August 11, 2020, 02:58:08 pm »
Are you sure it is QFP and not PLCC?
I am available for freelance work.


Offline SolderSuckerTopic starter

  • Regular Contributor
  • *
  • Posts: 145
  • Country: gb
Re: Trying to identify a source for a QFP 160 socket
« Reply #4 on: August 11, 2020, 03:08:48 pm »

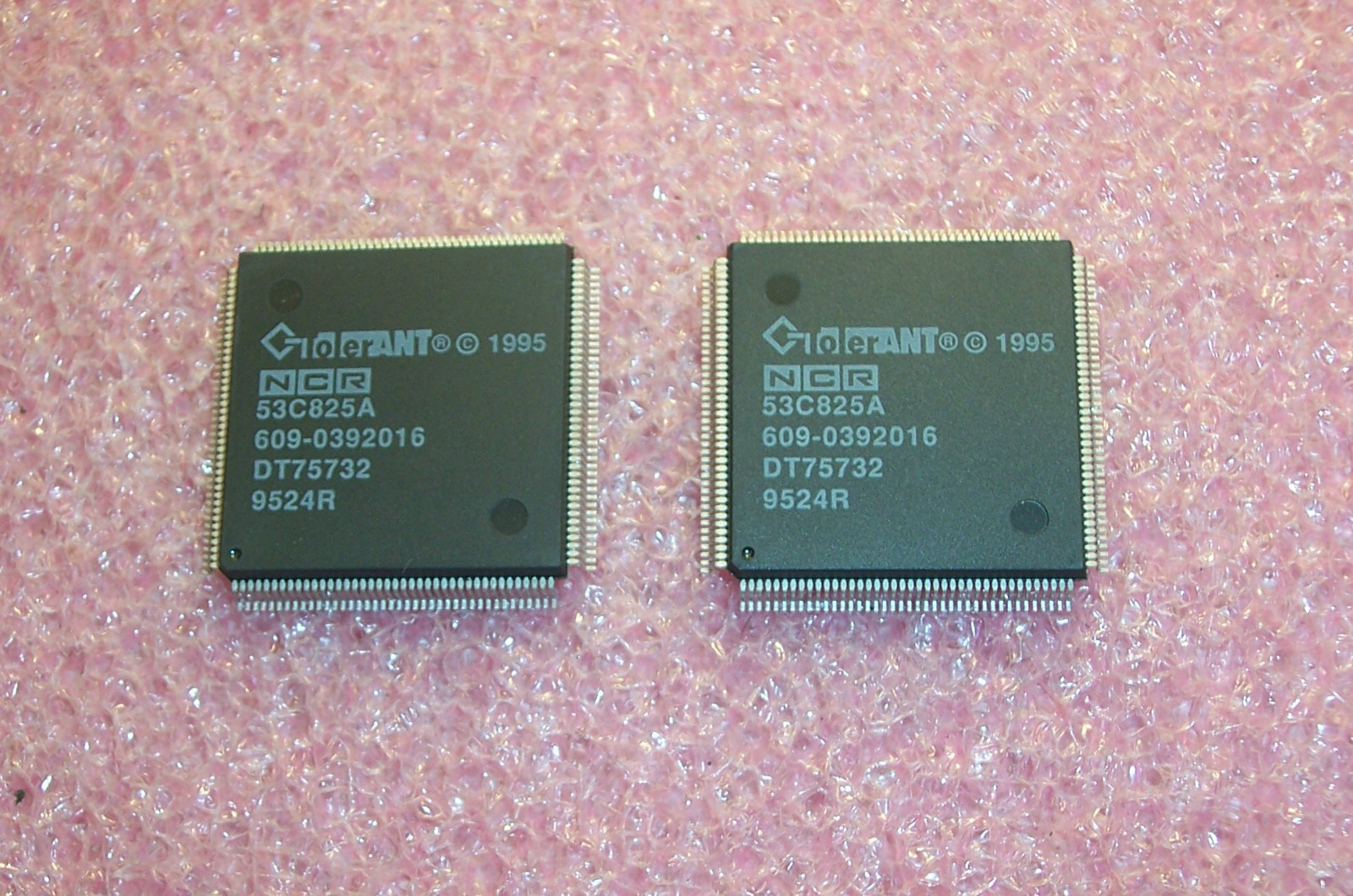

100% positive, it's to take a chip with this kind of leg arrangement:

https://i.ebayimg.com/images/g/IIUAAOSwdGFYqwSt/s-l1600.jpg

(that's just a random image to show the type of legs the chip has).

The sockets do exist, but seemingly they are hard to find these days.



Offline Gribo

  • Frequent Contributor
  • **
  • Posts: 649
  • Country: ca
I am available for freelance work.

The following users thanked this post: SolderSucker

Offline Gribo

  • Frequent Contributor
  • **
  • Posts: 649
  • Country: ca
I am available for freelance work.

The following users thanked this post: SolderSucker

Offline SolderSuckerTopic starter

  • Regular Contributor
  • *
  • Posts: 145
  • Country: gb


Offline SolderSuckerTopic starter

  • Regular Contributor
  • *
  • Posts: 145
  • Country: gb
