Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #75 on: November 08, 2010, 01:44:11 pm »
There's a thread on SPCR about this, with a link to this Maxim app note:
http://www.maxim-ic.com/app-notes/index.mvp/id/3149

Plus pictures of the Manoxia opened up:
http://www.silentpcreview.com/forums/viewtopic.php?t=52555


Looks like it's really cheaply made.  Soldering is terrible.
Mark Higgins


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #76 on: November 08, 2010, 04:57:07 pm »
I think it is rather poor design. The microcontroller controls a crude 4 bit DAC, so no more than 16 speeds - maybe less. The transistors may not share current equally (no emitter resistors). Linear operation is inefficient and will drop about 1 volt at max speed.


« Last Edit: November 18, 2010, 04:30:41 pm by oPossum »


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #77 on: November 09, 2010, 05:30:50 am »
Alleluia  ...   :D   speechless ..  Thanks .

As soon it arrives , I will verify the schematic.


About the pictures I had some difficulty to find them on the thread..
It is external links, and so here they are...

http://www.xs4all.nl/~joeribl/images/pwmx-front.jpg
http://www.xs4all.nl/~joeribl/images/pwmx-back1.jpg
http://www.xs4all.nl/~joeribl/images/pwmx-back2.jpg
« Last Edit: November 09, 2010, 05:43:45 am by Kiriakos-GR »


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #78 on: November 09, 2010, 05:48:29 am »

Plus pictures of the Manoxia opened up:
http://www.silentpcreview.com/forums/viewtopic.php?t=52555


Looks like it's really cheaply made.  Soldering is terrible.


Who cares ..  :D


Offline sonicj

  • Frequent Contributor
  • **
  • Posts: 752
  • Country: us
  • updata successed!
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #79 on: November 09, 2010, 05:53:40 am »
wow! thats pretty bad!


Offline Mechatrommer

  • Super Contributor
  • ***
  • Posts: 9067
  • Country: my
  • reassessing directives...
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #80 on: November 09, 2010, 06:09:42 am »
wow! thats pretty bad!
maybe its that hard for him to find a good flux or reflow machine supply (like me :( ). so need to DIY from what he already has (solder only). the PCB is nice though.
if something can select, how cant it be intelligent? if something is intelligent, how cant it exist?


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #81 on: November 09, 2010, 06:12:59 am »

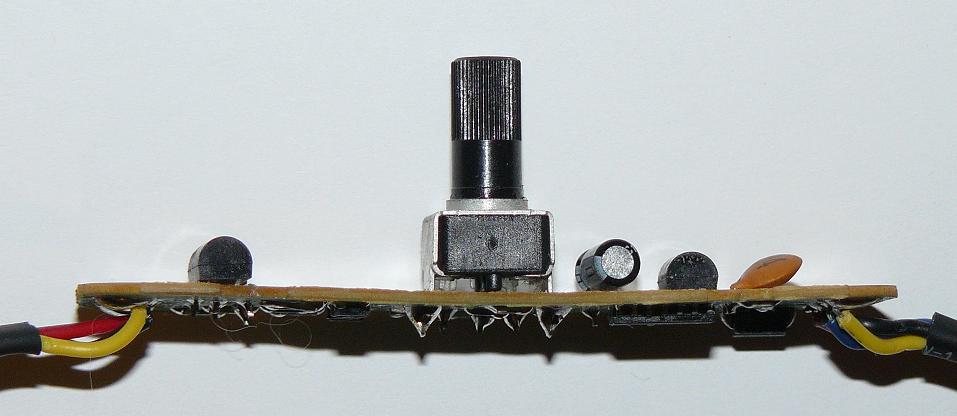

Build quality is typical for a low cost product.

PCB is thin and slightly warped. It does not appear to be FR4.



Wave soldered (not reflow), flux residue on board.



Some flux on top side too. Pot is smooth and tight.



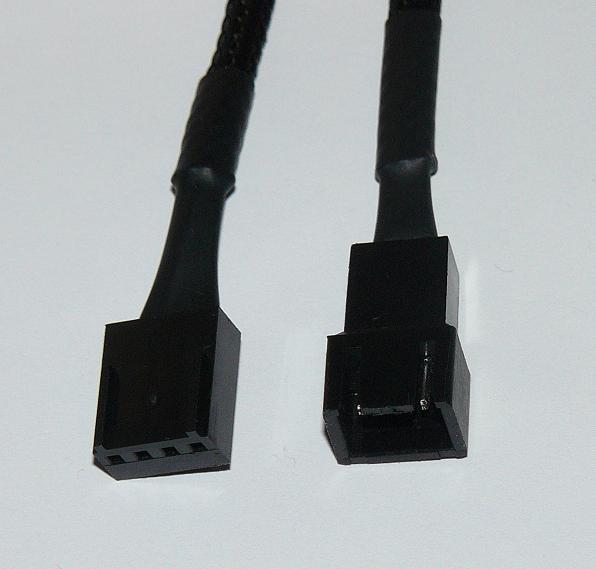

Connectors are keyed. Heat shrink, but no strain relief.


« Last Edit: November 18, 2010, 04:31:26 pm by oPossum »


Offline Mechatrommer

  • Super Contributor
  • ***
  • Posts: 9067
  • Country: my
  • reassessing directives...
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #82 on: November 09, 2010, 06:24:32 am »
Wave soldered (not reflow), flux residue on board.
not hand soldered huh! well ok... thats UGLY! my hands are better than that.
if something can select, how cant it be intelligent? if something is intelligent, how cant it exist?


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #83 on: November 10, 2010, 04:44:51 am »
I do not believe this ... even more pictures .  :D

Can any one predict the output in Amperes  ?  If I use as 12V input from molex  ( so to not stress the fan header )  and the rest cables  normally connected !!

It looks that there is four output transistors  named as J3.


The PWM reference circuitry ,  have as info , that the output circuitry it must be capable to offer even 2A ,
for 1-2 ms ( starting current ) .

edit:  Those must be called as JFET , found one description about output as 35mA/V .
At 12V X  0.35 = 420mA  its one   By four times = 1680mA   ( yep that's sounds close enough )  ;)
« Last Edit: November 10, 2010, 05:05:51 am by Kiriakos-GR »


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #84 on: November 10, 2010, 06:06:37 am »

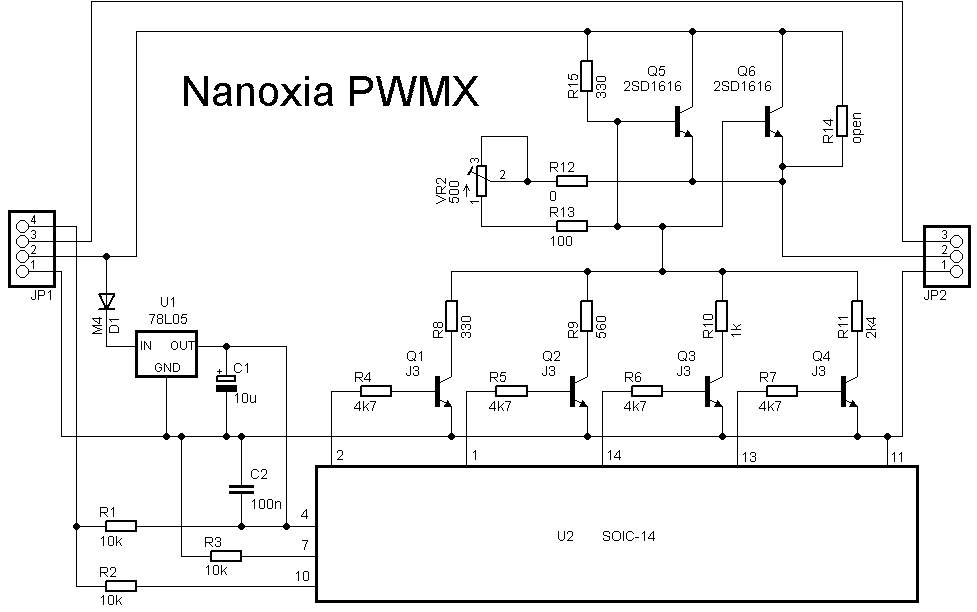

Q1 to Q4 are NPN as shown in the schematic. They may be S9013 or MMS9013. There is no standard for marking SOT-23 package components.

Q5 and Q6 carry current to the fan. I estimate they will be warm at 100 mA, hot at 200 mA and dead at 400 mA (continuous @ 6V to fan).
« Last Edit: November 10, 2010, 07:09:27 am by oPossum »


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #85 on: November 10, 2010, 09:32:27 pm »
What about replacing those with better ones ...  is there any suggestion.

I need  600mA  continuous @12v , and 2A peak for 2 milliseconds.
(the size does no matter )


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #86 on: November 16, 2010, 05:15:57 am »
The fan will draw less current at lower voltage, so it may be OK as-is. Try it and see what happens. If it blows up then mod it.

A CFP (Sziklai) output using a PNP transistor (Q6) in a TO-220 package should be good for 2A or more with a small heat sink.

Modified schematic...

« Last Edit: November 18, 2010, 04:31:51 pm by oPossum »


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #87 on: November 16, 2010, 09:01:35 am »
Nice  :)

In the primary design Q5+Q6 works in parallel .
In the last  the Q5 drivers the larger Q6.  ;)

I will have a look about the BD part specs on my vrt books.  ;)


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #88 on: November 16, 2010, 09:09:48 am »

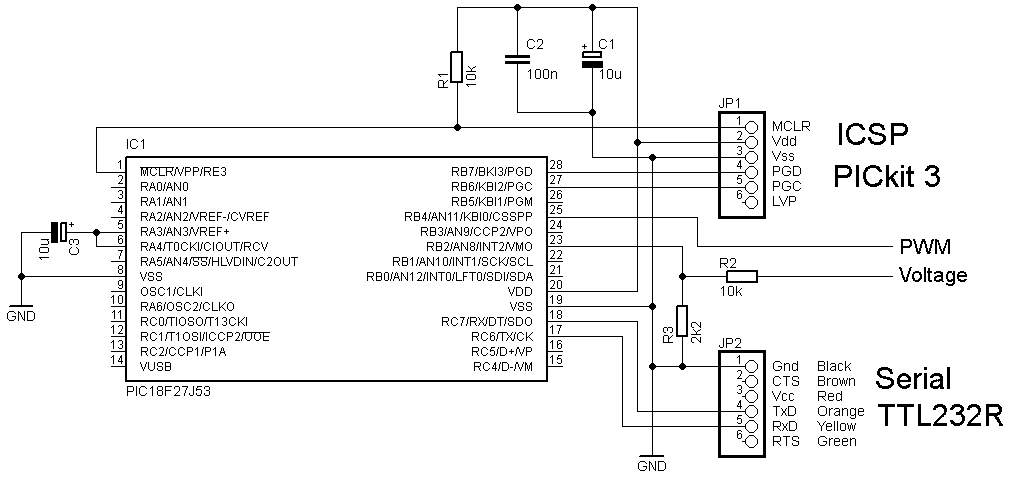

I built a circuit to characterize PWM to voltage converters.

Schematic


Source code, schematic, and captured data

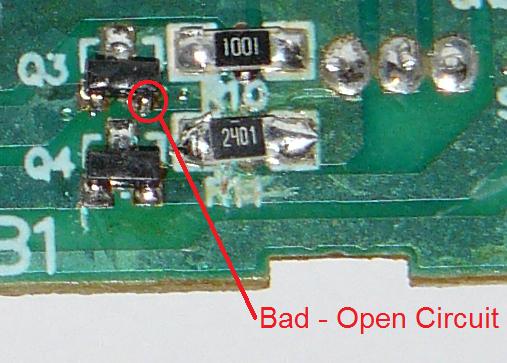

The first test showed that the Nanoxia PWMX was not working correctly. The problem was bad solder on the emitter of Q3.

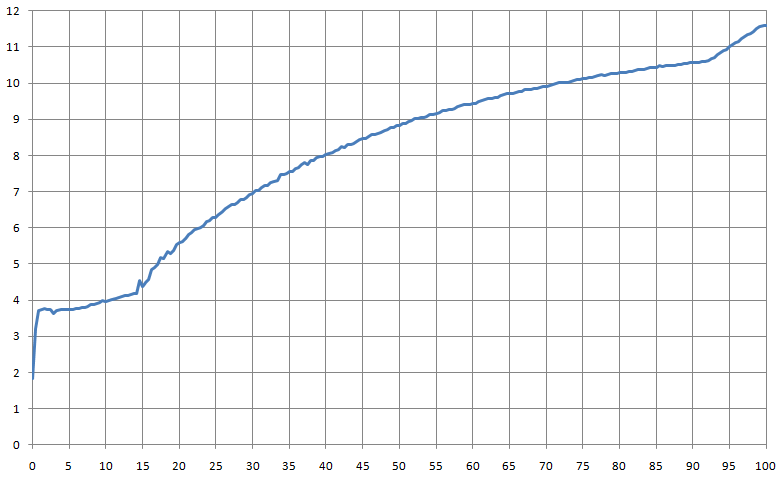

Plot showing Voltage (left axis) vs. PWM % (bottom axis).

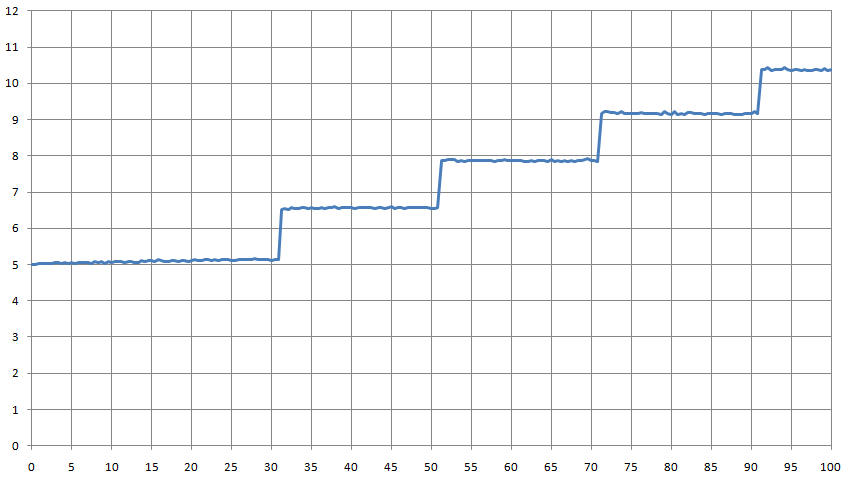

After fix. Pot set to max fan speed (full CW).


Pot set to middle of rotation.


Pot set to min fan speed (full CCW).


Pot set to middle voltage.

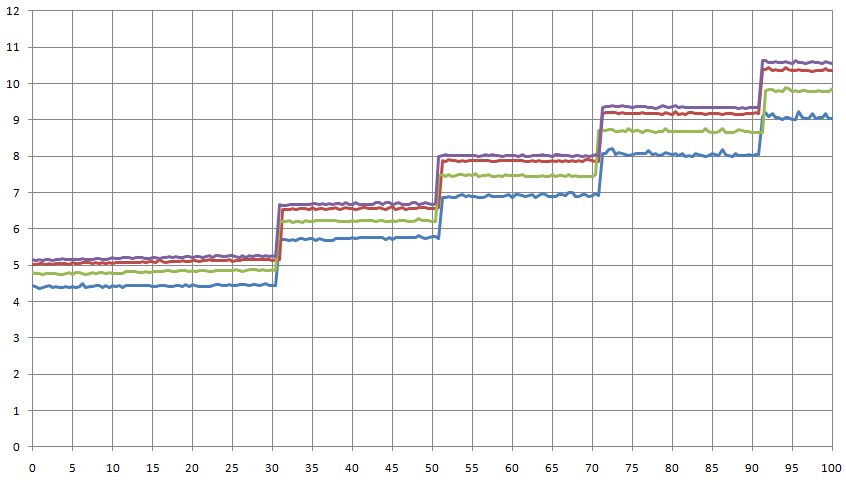

Comparison. Max (violet), middle rotation (red), middle voltage (green), min (blue).

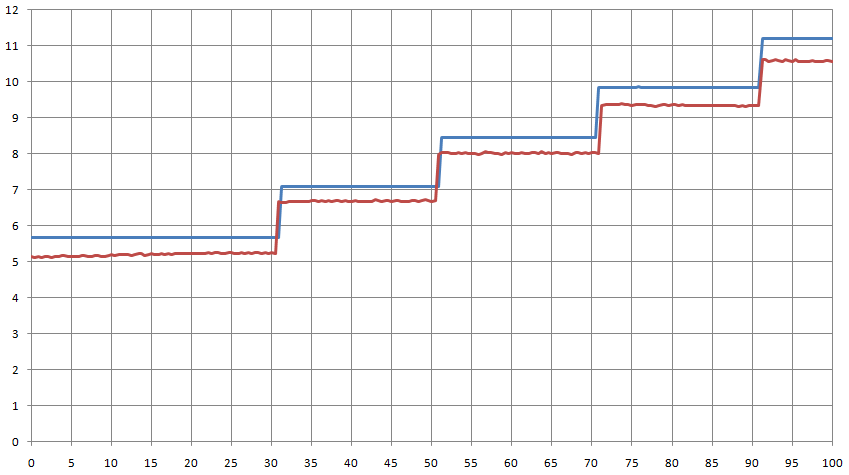

Comparison of output with no fan (blue) and fan that draws 220 mA @ 12 volts (red).
Noise in the plots is due to fan commutation. There is no noise with no fan connected.



« Last Edit: November 18, 2010, 04:34:25 pm by oPossum »


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #89 on: November 17, 2010, 08:41:30 am »
Tests at 20, 25 and 30 kHz. It measures both the on and off duration of the pulse. Very good.

« Last Edit: November 18, 2010, 04:35:08 pm by oPossum »


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #90 on: November 17, 2010, 12:36:25 pm »
oPossum,
if you had get in to the "Win a UEi DM391 Multimeter" thread,
I wish with all my hart, to get it  ;)

( its an long shot, but this is my wish )





« Last Edit: November 17, 2010, 12:38:21 pm by Kiriakos-GR »


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #91 on: November 17, 2010, 04:59:52 pm »

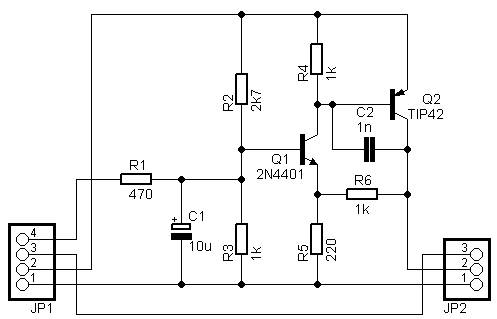

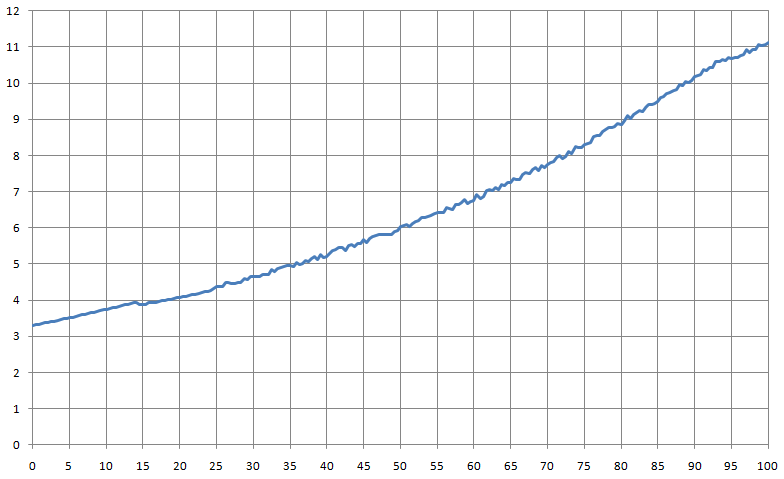

I built this on a breadboard...



Tested with 220 mA fan. Results...





Note: Max current with Q2 2N4403 or similar is ~300 mA. Use larger Darlington PNP like TIP125 for more current.
Use R5 if fan must run below 20% PWM.
« Last Edit: November 18, 2010, 04:37:28 pm by oPossum »


Offline scrat

  • Frequent Contributor
  • **
  • Posts: 606
  • Country: it
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #92 on: November 17, 2010, 05:51:32 pm »
Designed, built, tested, indication of possible modifications. Great job, oPossum!
One machine can do the work of fifty ordinary men. No machine can do the work of one extraordinary man. - Elbert Hubbard


Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #93 on: November 17, 2010, 11:55:00 pm »
I can see only one part missing from the last design,  the pot that I will control the final DC output even at 100% PWM .

(Like the PWMX does.)   ;)

( About the 2N4401  i have the equivalent BC337 next to me X2 )   :)

« Last Edit: November 18, 2010, 12:08:58 am by Kiriakos-GR »


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #94 on: November 18, 2010, 09:24:42 pm »
I built this on a breadboard...



Tested with 220 mA fan. Results...



Fan runs at 25%, but tach does not work until 32%


Increase R1 to move start of curve up (so fan will run at lower PWM %). Decrease R6 to move entire curve down (so max speed is reduced).


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #95 on: November 18, 2010, 09:28:25 pm »

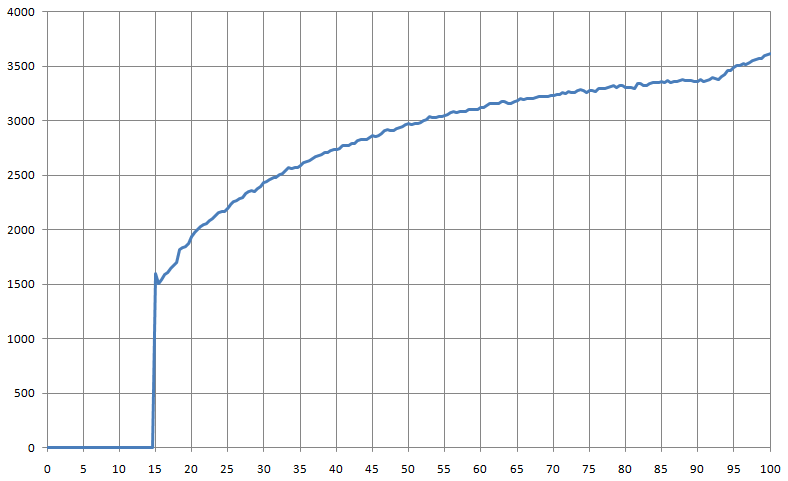

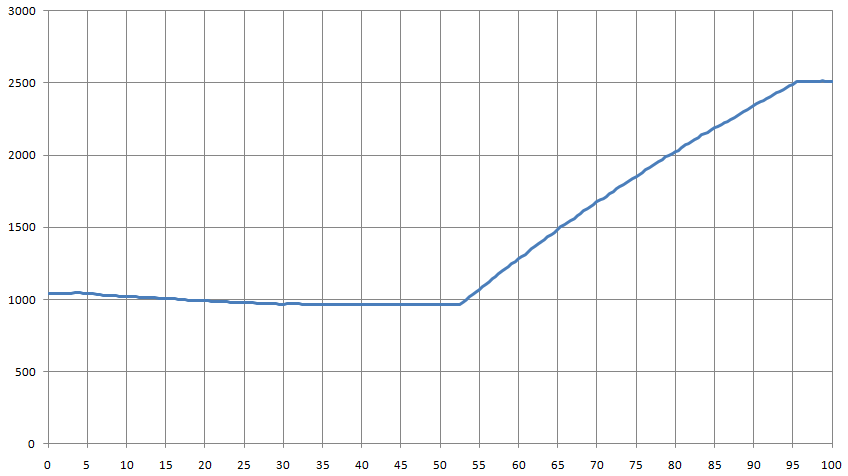

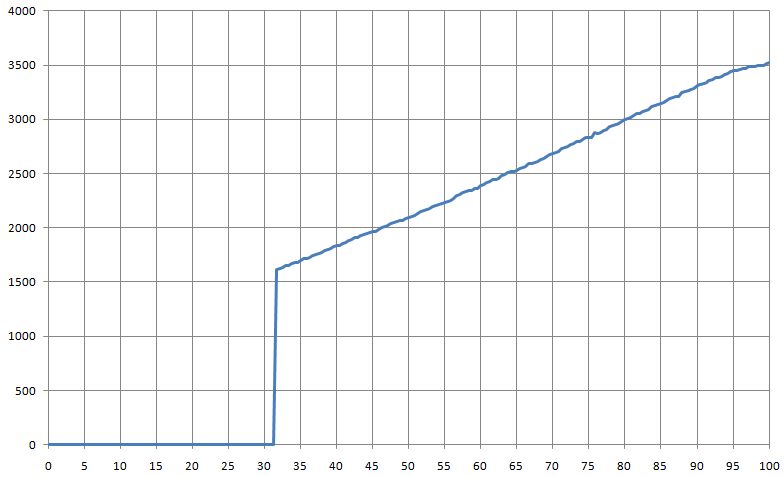

PWM % vs RPM for genuine Intel 4 wire fan supplied with boxed Pentium 4 LGA775




Offline Kiriakos-GR

  • Super Contributor
  • ***
  • Banned!
  • Posts: 3525
  • Country: gr
  • User is banned.
    • Honda AX-1 rebuild
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #96 on: November 18, 2010, 11:57:01 pm »
The actual dream or wish , of any one who needs this design.
Are to use an 120mm fan with this circuitry .
The only problem are , that even the best ever 120mm fan it will start to become audible above the 1000-1200rpm .

And and so the  20%PWM  ( start point it should represent the 600rpm ) and the 100% PWM ,
the 1400rpm mark.

I bet that with this design , and the adjustment points R1 & R6 , everything looks possible.

I think that I am going to build it.  :)

The German that I ordered the PWMX , he did not shipped anything after all this days, with the excuse that he run out of stock about the PWMX , and he waits to restock.
I had kick his **** today ( after of two weeks of patience ) , and put the Paypal on his tail, so to get my payment back.



Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.

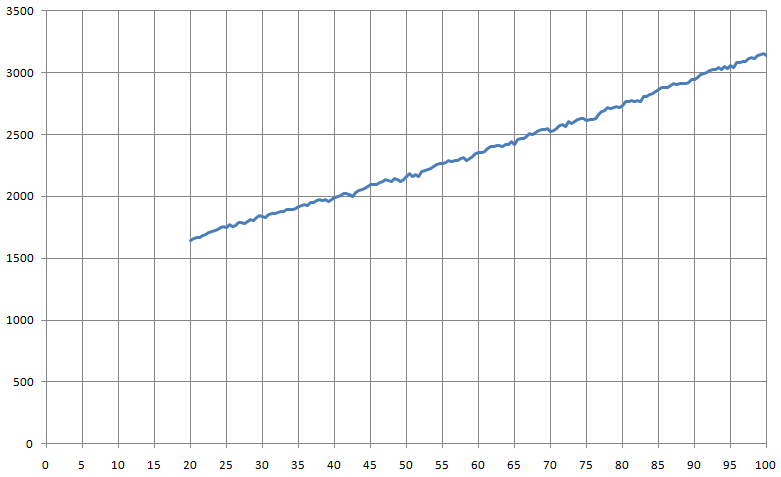

« Reply #97 on: November 19, 2010, 09:53:05 am »
R1 = 820  R6 = 1k






R1 = 820  R6 = 820






R1 = 820  R6 = 680






Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.

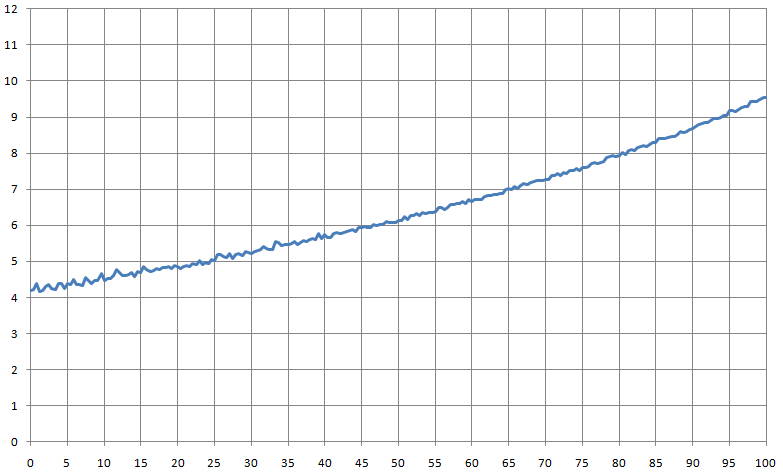

« Reply #98 on: November 19, 2010, 10:11:40 am »
Violet:  R1 = 470  R6 = 1k
Red: R1 = 820  R6 = 1k
Green: R1 = 820  R6 = 820
Blue: R1 = 820  R6 = 680


« Last Edit: November 19, 2010, 10:13:49 am by oPossum »


Offline oPossum

  • Frequent Contributor
  • **
  • Posts: 810
  • Country: us
  • The other white meat
Re: PC motherboard: PWM 4 pins to 3 Pins digital converter.
« Reply #99 on: November 19, 2010, 01:34:58 pm »

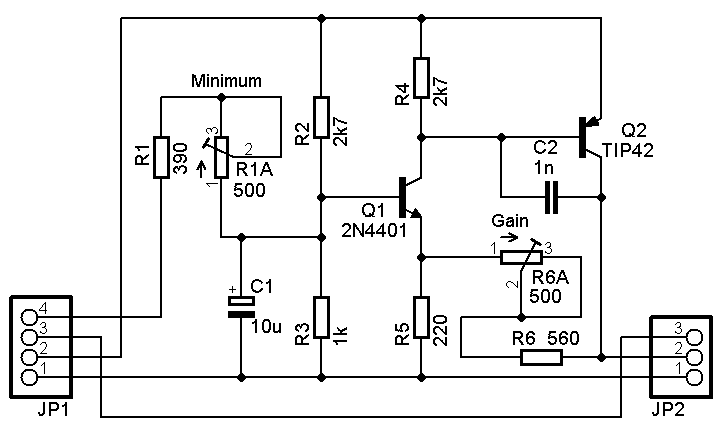

Adjustable version.





Share me

Digg  Facebook  SlashDot  Delicious  Technorati  Twitter  Google  Yahoo
Smf
