Digitech QC1933 Scope
« on: January 06, 2024, 07:32:17 am »
G'day all.

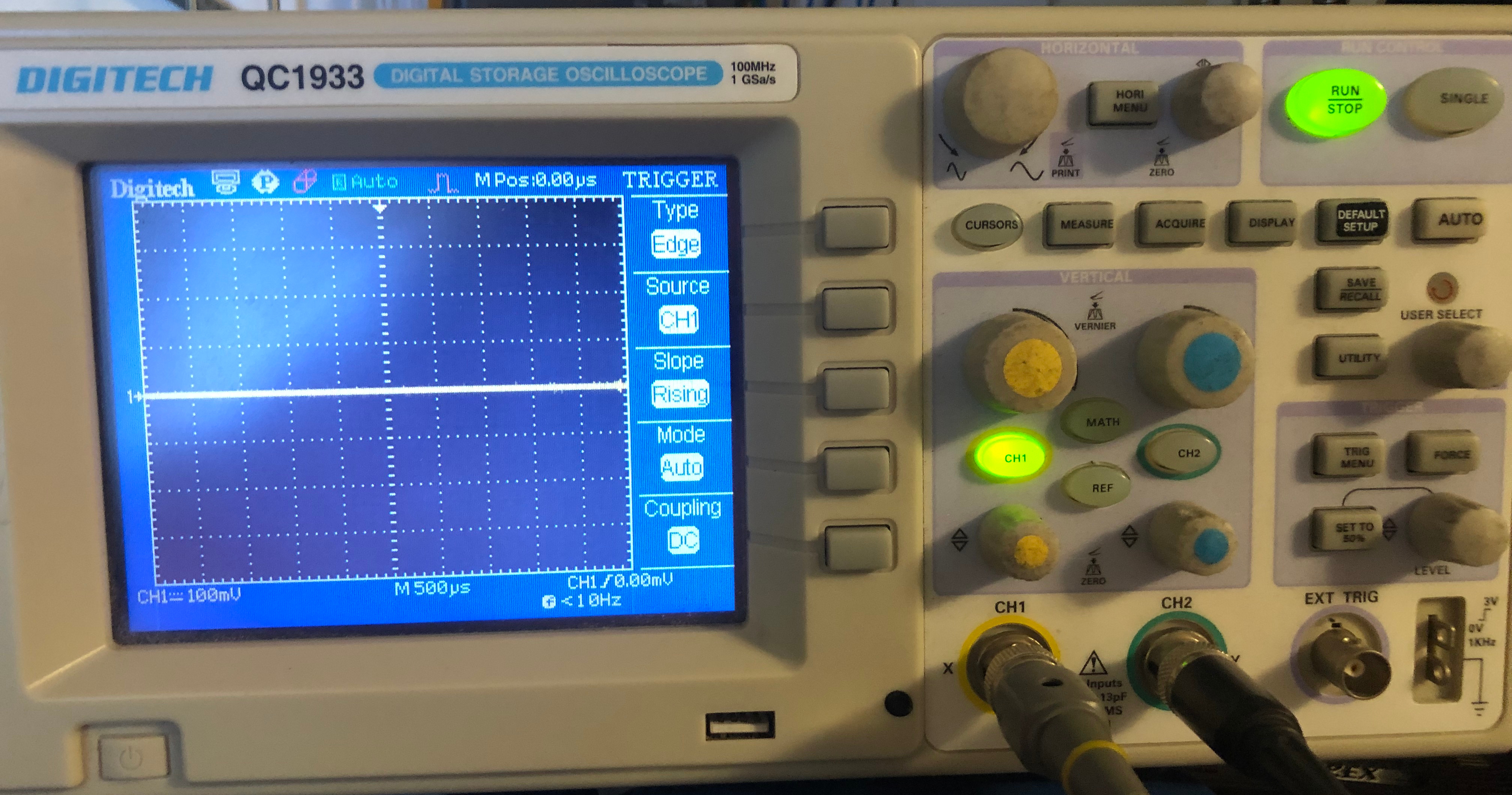

I've inherited a "Digitech" QC1933 scope. It didn't come with documentation and while it's relatively easy to use there's still some stuff I can't quite figure out (like if I can delay a trigger).

I've combed the net and turned up nothing other than it looks like it was once sold by Jaycar. As such, it'll be a re-badge, and having a browse of scope UI images it looks closest to a Siglent.

Does anyone recognise it and possibly have a lead on any documentation?


I do have a Tek 2440 which does everything I need it to do, but this seems like it might be a bit of a simple go-to for a quick measure, and it can screen capture (which I can only do on the 2440 by pretending to be a HP printer over GPIB).


Online tautech

  • Super Contributor
  • ***
  • Posts: 29810
  • Country: nz
  • Taupaki Technologies Ltd. Siglent Distributor NZ.
    • Taupaki Technologies Ltd.
Re: Digitech QC1933 Scope
« Reply #1 on: January 06, 2024, 08:15:38 am »
Try SDS1102CA
5” display and IIRC 40kpts mem depth.

If 2M memory it’s a SDS1102CM.

Either way the UI is the same.
Avid Rabid Hobbyist.
Some stuff seen @ Siglent HQ cannot be shared.


Offline BradCTopic starter

  • Super Contributor
  • ***
  • Posts: 2129
  • Country: au
Re: Digitech QC1933 Scope
« Reply #2 on: January 06, 2024, 02:10:19 pm »
Try SDS1102CA

Awesome, that put me on the right path. It's not a Siglent, it's an ATTEN ADS7102CA ADS2102CA. Now I can see if I can find a better manual. The Siglent manual has all sorts of firmware options the ATTEN doesn't have.

Ta!
« Last Edit: January 06, 2024, 02:15:29 pm by BradC »


Offline Stuart Coyle

  • Contributor
  • Posts: 45
  • Country: au
Re: Digitech QC1933 Scope
« Reply #3 on: March 11, 2024, 05:11:03 am »
I know I'm a bit late to the party, but I have one of these scopes with a manual. I can get it scanned if you have not found anything else.


Offline BradCTopic starter

  • Super Contributor
  • ***
  • Posts: 2129
  • Country: au
Re: Digitech QC1933 Scope
« Reply #4 on: March 11, 2024, 08:04:48 am »
Appreciate the offer Stuart. I managed to locate a printed copy. Still getting used to the trigger system, but it does the job.
