Siglent SDS8000A Flagship [16 GHz / 4 Ch / 40 GSa/s / 2 Gpts per Ch / 12‑bit]

[DaneLaw]

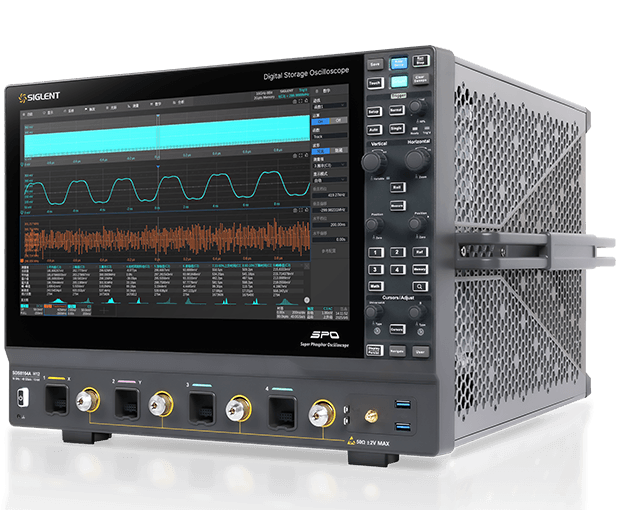

New oscilloscope from Siglent.

SDS8000A H12
Analog Bandwidth: 8 GHz, 13 GHz, 16 GHz
Number of Channels: 4 + EXT
Vertical Resolution: 12-bit
Maximum Storage Depth: Up to 2 Gpts per channel
Real-Time Sampling Rate: Up to 40 GSa/s per channel
Waveform Capture Rate: Up to 500,000 frames per second
Screen: 15.6-inch capacitive touch HD display (1920x1080 resolution)

High-Resolution 12-Bit Performance
Hardware ADC provides over 16 times the accuracy of traditional 8-bit oscilloscopes
Reduces quantization errors and accurately reproduces waveform details
ERES mode achieves up to 16-bit resolution for detecting minute signals

Ultra-Low Background Noise
Noise floor: 176 μVrms (typical) on all channels
Reduces instrument interference, ensures high-fidelity waveform reproduction
Suitable for precision measurement and advanced research

Eye Diagram and Jitter Testing
Supports eye diagram and jitter testing, automatically extracts clock signals from serial data
Automatically measures eye diagrams and jitter parameters
Provides signal equalization, histogram, and spectrum views for in-depth analysis

Protocol Conformance and Consistency Analysis
Supports USB 2.0/3.x, Ethernet (10M, 100M, 1G, 2.5G, 5G, 10G), Automotive Ethernet, DDR2/3/4, PCIe 1.0/2.0, MIPI DPHY 1.2
Automates measurement and generates standardized test reports
Enables debugging to conformance verification on a single instrument

Intelligent Design and User Experience
15.6-inch touchscreen, high-performance RF input, server-grade power module
Honeycomb heat dissipation reduces noise and stabilizes temperature
Remote control via web server and SigScopeLab software

Trigger Types
Edge, slope, pulse width, window, underamplitude, interval, timeout, bit pattern, video, leading edge, Nth edge, delay, setup/hold time, serial triggering

Measurement and Analysis
Measures over 60 parameters and supports histogram, trajectory, and trend chart statistics
Serial triggering and decoding: Standard: I2C, SPI, UART, CAN, LIN; Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, ARINC 429, Manchester, USB 2.0, SPMI, SpaceWire, CAN XL, 8B/10B

Mathematical Operations
32M-point FFT, time-domain operations including addition, subtraction, multiplication, division, integration, differentiation, square root, averaging
ERES, absolute value, sign, equivalence, negation, logarithm, exponentiation, interpolation, maximum/minimum hold
Supports custom expressions for complex calculations

Data Analysis and Processing Tools
Search, navigation, history, template testing, waveform histogram, counter, eye diagram, jitter analysis (optional), SignalScan
Optional consistency analysis for multiple protocols

Interface and Connectivity
4x USB 3.0 Host, USB 3.0 Device (USBTMC), 2.5G LAN (VXI-11+SCPI, Telnet+SCPI, Socket+SCPI, LXI, WebServer)
External display interface: DP
Other outputs: External trigger input, auxiliary outputs (TRIG OUT, PASS/FAIL), Cal Out output, 10 MHz In/Out

[tautech]

Yup it's a beast.



2.92mm SMA connectors.

[DaneLaw]

It's a beautiful Oscilloscope, with a big high resolution 15.6 screen [FHD]

The picture below gives an indication of the size.
The Siglent Dynasty

[egonotto]

Hello,

well, I don't think 1920*1080 is “big high resolution” anymore.

Best regards,
egonotto

[DaneLaw]

Full HD is a sweetspot for a 15.6" screen.. it's still only a 15.6" inch screen, and that is a decent size for a modern high-end benchscope, and a screensize we also see on models like Magnova, that also uses Full HD, though a very different scope
You get close to +350% more pixels on the 15.6" screens of SDS7000A & SDS8000A (2.1 mio) than what you get on fx SDS3000X HD, which I recall got 1024x600 screen resolution (600k) on its 10.1" screen.
Models like SDS6000PRO (H10/H12) and SDS5000X-HD seem to all use 12.1" and 1280x800 as far as I can tell from their datasheets.

Video of the new Siglent SDS8000A.

Promotional Video

[egonotto]

Hello,

in terms of resolution, Micsig's MHO series is the best I've seen so far. No other scope has 1920*1200 resolution. I don't think even scopes costing over $1,000,000 have such high resolution.

Best regards,
egonotto

[egonotto]

Hello,

I2C SPI UART for a scope that only has 50 ohm inputs?

Best regards,
egonotto

[tautech]

Hello,

I2C SPI UART for a scope that only has 50 ohm inputs?

Best regards,
egonotto

No, the front panels warnings are for 50 Ohm input mode and the datasheet specifies 1 MΩ ≤ 42 Vpk for External trigger (edit to correct)

These use a new probe interface called SAPBus2 of which there are HiZ and 50 Ohm probes available.
See P19 of the datasheet.

[egonotto]

Hello,

according to the data sheet, the SDS8000 only has: “Input impedance 50 Ω ± 3%.”
A necessary probe for 1 MOhm is likely more expensive than an additional SDS800X HD for I2C, SPI, and UART.

Best regards,
egonotto

[tautech]

Hello,

according to the data sheet, the SDS8000 only has: “Input impedance 50 Ω ± 3%.”
A necessary probe for 1 MOhm is likely more expensive than an additional SDS800X HD for I2C, SPI, and UART.

Best regards,
egonotto

Yes, sorry you are correct, 50 Ohm inputs only.

Quite possibly, the selection of probes is constantly evolving and there is much yet to learn about SDS8000A.

[kmoonwalker]

all top range of freqencies scopes are usually 50 Ohms input due to transmission line specialization - this is how industry operates

supa scope -> mega wallet drain accessories mandatory

[DaneLaw]

Hello,

in terms of resolution, Micsig's MHO series is the best I've seen so far. No other scope has 1920*1200 resolution. I don't think even scopes costing over $1,000,000 have such high resolution.

Best regards,
egonotto

Yes, 1200p is not that common, as far as I can tell - most higher-end scopes tend to max out with 1080p.

The only other scope that comes to mind with a 1200p screen is the one from Jiujin.. though 15" 1600x1200p
Another one of these "independently developed" Chinese high-end scopes that are seeing daylight over the last decade, likely backed with significant state funding.

Its a model from a few years back, I dont think its been ported to the west, even though all their promo, datasheets, etc were in English.
I have uploaded the Western datasheet here. https://pdfhost.io/v/3KRGbLRsbV_PDS6184A

Its this one below [ 18/20GHz, 80Gsa/s, 2Gpts/ch.]

[KungFuJosh]

1920x1200 is 16:10 aspect ratio. While that aspect ratio does make sense for scopes, they typically use standard 16:9 panels which are more standard/common. If they have to pay an extra 12 cents for a panel, that will cost an extra $5000 to the end user.
