Author Topic: Need Help With Korean A-One AM-0629 Chassis  (Read 339 times)

0 Members and 1 Guest are viewing this topic.

Offline Ookpik

  • Contributor
  • Posts: 15
  • Country: us
Need Help With Korean A-One AM-0629 Chassis
« on: March 18, 2019, 12:20:22 am »
I am fixing this chassis for a friend and am having trouble. I have deduced that the problem is most likely the voltage regulator however I have no idea which part or parts comprise the voltage regulator.

The chassis is the type that was used as a replacement chassis for 1980’s video arcade games. Unfortunately, no documentation seems to exist for this chassis. The closest schematic I have located can be found Here.

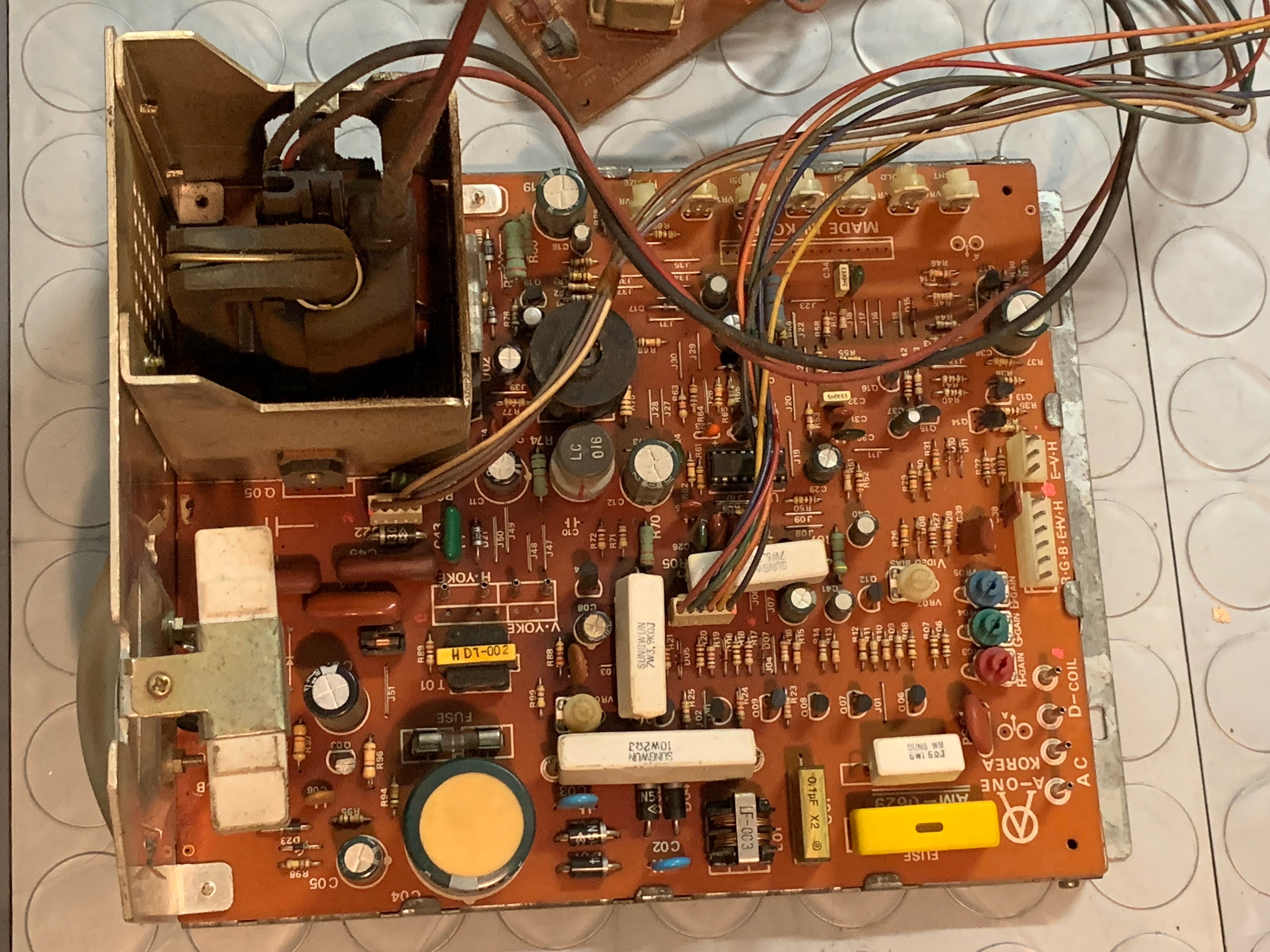

A larger image of the chassis can be found Here.



Any help would be greatly appreciated!  :)
« Last Edit: March 18, 2019, 12:25:02 am by Ookpik »


Offline Ookpik

  • Contributor
  • Posts: 15
  • Country: us
Re: Need Help With Korean A-One AM-0629 Chassis
« Reply #1 on: March 22, 2019, 06:29:46 pm »
I did a cap kit on the chassis. No change.   :(

If anyone else has any suggestions they would be greatly appreciated!  :)


Online coromonadalix

  • Super Contributor
  • ***
  • Posts: 2916
  • Country: ca
Re: Need Help With Korean A-One AM-0629 Chassis
« Reply #2 on: March 22, 2019, 08:43:12 pm »
hum  check  on the aluminum plate,  i think the Q05  is a regulator or the flyback driver,  do i see some U02 near the plate ???

your closest schematics is for speakers   not for an monitor


« Last Edit: March 22, 2019, 08:49:27 pm by coromonadalix »
